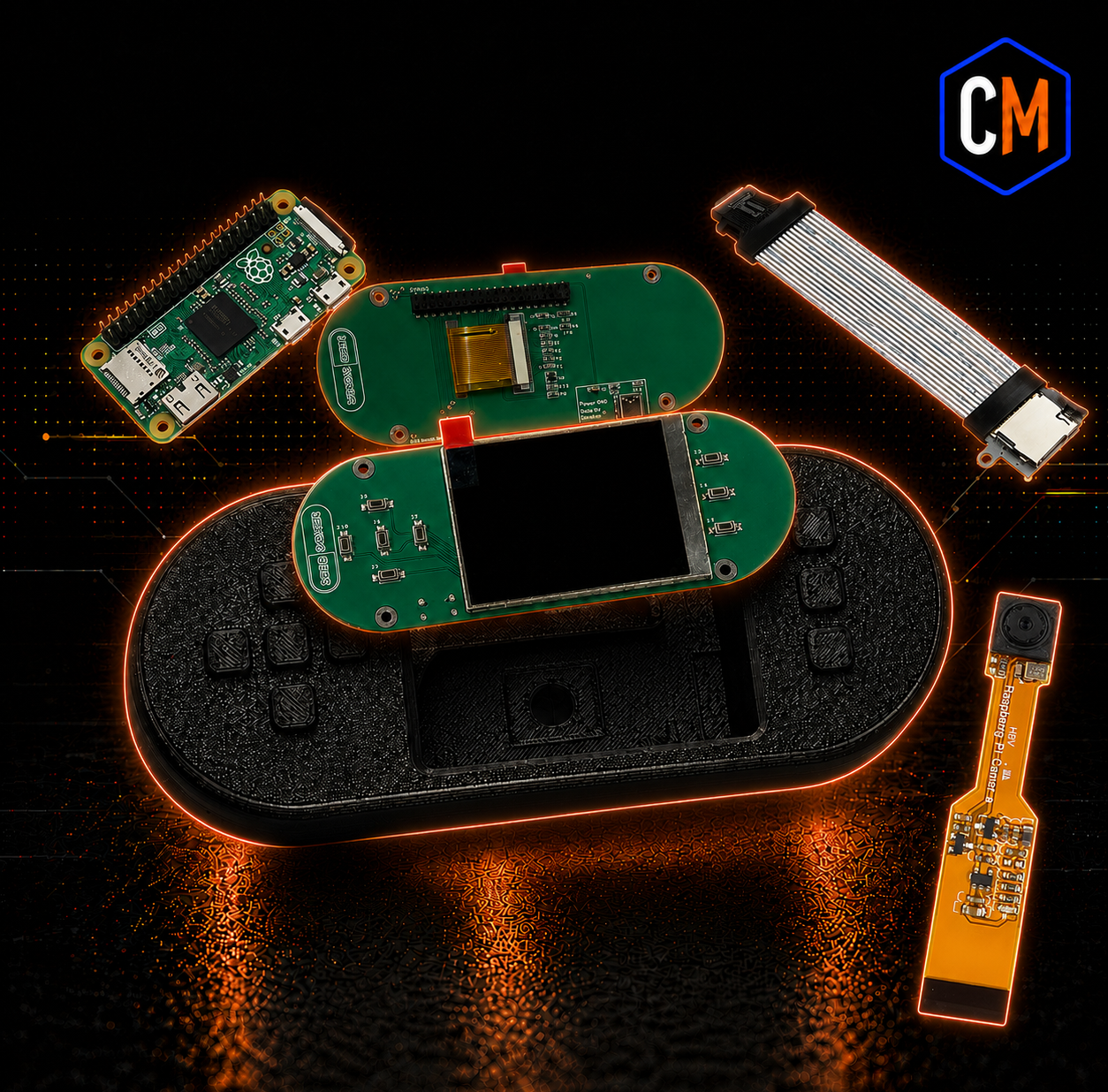

Build your own SeedSigner+ with the hardware needed for a complete device, minus the microSD card. This kit includes the SeedSigner+ display HAT, Raspberry Pi Zero 1.3 with pre-soldered GPIO pins, compatible camera module, spring-loaded microSD extension, and 3D-printed enclosure.
Full Product Description
The SeedSigner+ DIY Kit includes the hardware needed to build your own SeedSigner+ in a clean, no-solder assembly package.
Designed around the Raspberry Pi Zero, SeedSigner+ improves on the original SeedSigner hardware profile with a larger display, intuitive DPAD-style controls, a spring-loaded microSD extension, and a conveniently located USB-C power-only port.
The included Raspberry Pi Zero 1.3 arrives with the GPIO pins already soldered, and the compatible camera module is included, so there is no soldering required for assembly.
You supply and prepare your own microSD card. This allows you to independently source the storage media used to load the SeedSigner software.
SeedSigner+ features a bright 2.8″ IPS 240×320 display, improved onscreen readability, intuitive navigation, and more efficient QR data transfer for a refined SeedSigner experience.
SeedSigner+ Features
- 2.8″ IPS 240×320 display
- Improved onscreen readability
- More efficient QR data transfer
- DPAD-style controls for intuitive navigation
- Spring-loaded microSD extension
- Convenient USB-C power-only port
- No soldering required for assembly
What’s Included

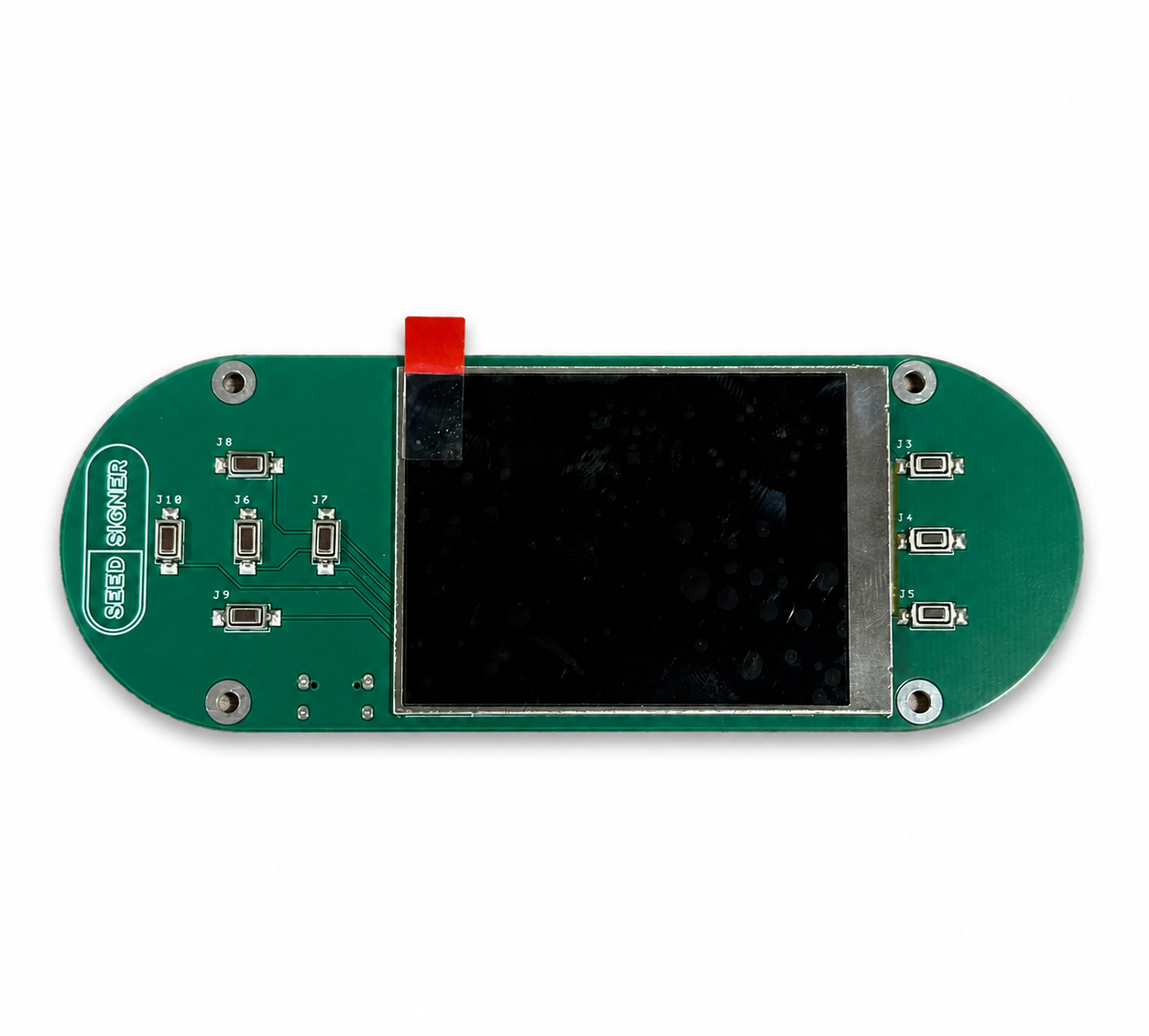

- SeedSigner+ display HAT
- Raspberry Pi Zero 1.3 with pre-soldered GPIO pins
- Compatible camera module
- Spring-loaded microSD extension module
- 3D-printed enclosure
What’s Not Included
- MicroSD card
Important Note
A microSD card is not included. You will need to supply and prepare a compatible microSD card to load the SeedSigner software.
10,000 sats from each SeedSigner+ sale goes to support the SeedSigner software project’s lead developer and lead maintainer.
